Name: 450KN Horizontal Directional Drilling Machine Large Torsion ISO9001
Brand: STETON
Price: 1 USD

Brand Name : STETON

Model Number : S450

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Supply Ability : 10 UNITS PER MONTH

Packaging Details : N/A

Engine power : 194 KW

Pullback force : 450KN

Rotation : 18000N.M

Mud Pump : 450L

Contact Now

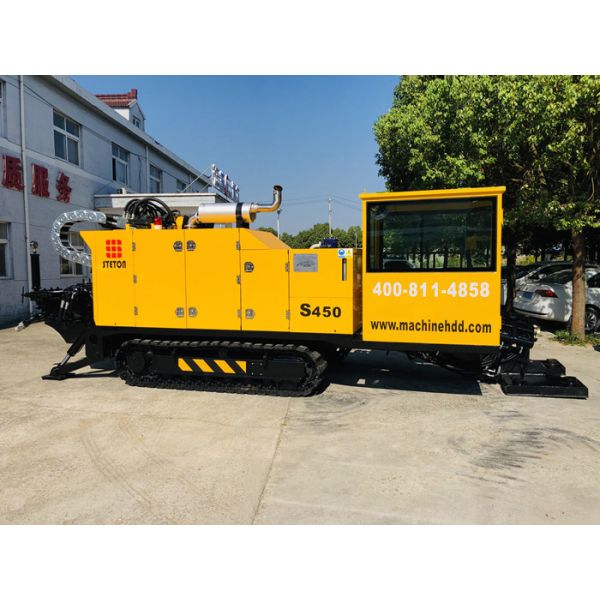

Horizontal Directional Drilling Machine - S450 For narrow space Pipe laying

I KEY point:

Powerful;

Fast travelling and tracking speed;

Can do the big piple line.

II Features:

Equipped with Cummins 194kw engine, large power, stable performance, lower fuel consumption, lower noise, more suitable working in city area.
Power head thrust and rotation adopts POCLAN motor, with large torsion, stable performance. Rotation have two speed , drilling faster and more torque; Thrust have 3 speed, let the work finished more faster. Thrust and rotation system both use hydraulic control system.
American style surface, looks so powerful.
Simple electric circuit design, low failure rate, convenient maintenance.
Equipped with φ83×3000mm or φ89×3000mm drill rods moderate machine size adapts to narrow and small working area and high efficient construction as well.
Mud flow control system, can depends customer project save water.
Rod auto loading system , Auto anchoring system and push and pulling force increase to 70ton can be choose separate.

III Specifications:

Engine Power	KW	194/2200
Max Thrust force	KN	450
Max Pullback force	KN	450
Max Torque	N.M	18000
Max Rotary speed	Rpm	138
Max carriage speed	m/min	42
Max Mud pump flow	L/min	450
Max Mud pressure	Mpa	8±0.5
Main machine size	mm	7800x2240x2260
Weight	T	12
Diameter of drilling rod	mm	Φ83 or Φ89
Length of drilling rod	m	3
Max diameter of pullback pipe	mm	φ150 – φ1000
Max construction length	m	900
Incidence Angle	°	11～22
Climbing angle	°	14
